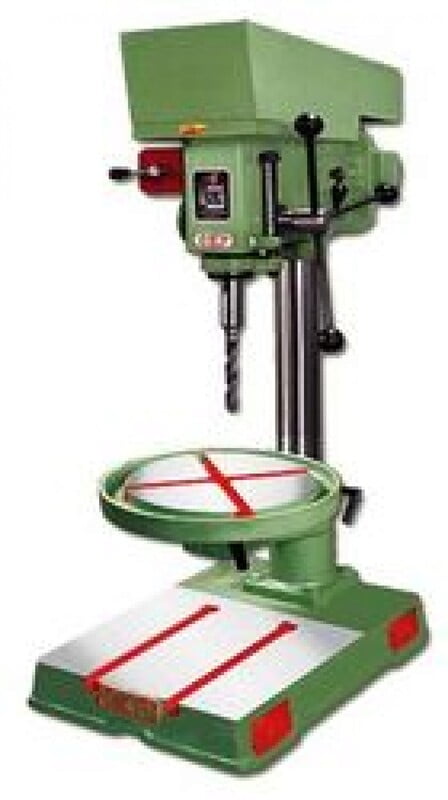

Pillar Drilling Machine, 20mm 2Hp 3Ph BDM/GT/A (Belt and Geared) Auto Feed with Electric: CKP
Non-returnable
₹138,000.00
Out of stock
Stay productive and efficient with our time-saving pillar drill solutions.
_productIds
358315000016929038,358315000016857163,358315000001947302,358315000001947752,358315000002654471,358315000003246096,358315000004946380,358315000001948013,358315000002033669,358315000005391298,358315000002238256,358315000007227524 Specification
Drilling Capacity in Steel 20mm Taper Capacity in Steel M12 Morse taper in Spindle M12 Spindle travels 130mm Vertical adjustment of Spindle head 425mm Pillar diameter 80mm Distance between center of spindle and Column front 200mm Max. Distance between spindle and table 340mm Max. Distance between spindle and base 700mm Table working Surface 300mm Base Working Surface 385x375mm No. of Spindle Speeds 10mm Range of Spindle Speeds 100-142-210-310-450 RPM Feed Hand Power of Spindle drive motor 0.75kw/2HP,1425 rpm, 400/440 Volt, AC Dimensions 1450x460x780 mm GT Working Surface 510 X 175mm
