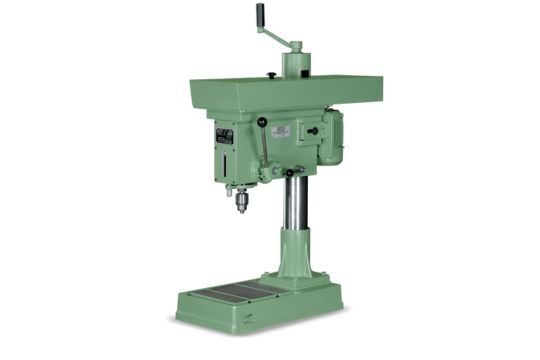

Pillar Drilling Machine, 10mm 0.8Hp 3Ph BDM/RC (Belt Type)High Speed Sensitive Drill with Electric: Eifco
Non-returnable
₹110,000.00
Out of stock
Stay productive and efficient with our time-saving pillar drill solutions.
Specification
Drilling capacity in steel 6 or 10 or 13 Morse taper in spindle J2-J6 (arbor type) Spindle traverse 76 Vertical adjustment of Spindle head 200 Pillar diameter 100 Distance between centre of spindle and Column Front 254 Distance between centre of spindle and Base Flange 200 Min. distance between chuck and base 90mm Max. distance between chuck and base 290mm Table Working surface 255 x 305mm No. of spindle speeds 6 Range of spindle speeds (rpm) 1200 - 1700 - 2400 - 3390 - 4800 - 6790 or 825 - 1335 - 2120 - 3910 - 6615 - 10000 - 14000 Range of spindle speeds (rpm) 100 - 142 - 210-310 - 450 - 600 - 852 - 1260 -1860 - 2700 Feed Hand Power of the spindle drive motor 0.6kW/ 0.8 HP, 2860 rpm, 415 V AC,3 Phase, 50 Hz Space occupied ( L x B x H )1000 x 450 x 850mm Net weight 190Kg 0.8 HP 2860 RPM MOTOR 10MM CAP WITH SPINDLE SPEEDS OF 1200 TO 6790 (OR) 825 TO 10000 RPM
