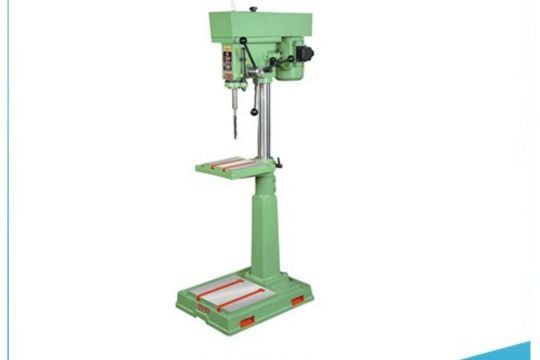

Pillar Drilling Machine, 13mm 0.5Hp 1Ph BDM/LD (Belt Type) with Electric: CKP
Non-returnable
₹55,200.00
Out of stock
Invest in a top-quality pillar drill and take your drilling projects to the next level - browse our collection today
_productIds
358315000005120383,358315000016929038,358315000001947113,358315000003932014,358315000002654498,358315000001948544,358315000001947860,358315000002033580,358315000006107086,358315000005493567,358315000002238227,358315000016843384 Specification
Drilling capacity 13mm Tapping capacity M8 Morse taper in spindle MT1 Spindle travels 100mm Pillar diameter Ø 58mm Distance between spindle and pillar front 150mm spindle and table 300mm spindle and base 500mm Table working surface 200 x 200mm Base working surface 180 x 210mm Vertical adj of drill head 425mm Spindle speeds(rpm) 480-820-1320-2080 Power of drive motor 0.5HP,1440rpm 400/440v,1ph Space occupied(L*B*H) 660 x 380 x 930 Weight Net 120Kg Gross 180 Kg
