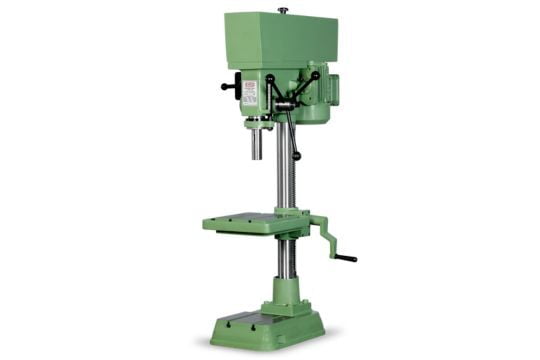

Pillar Drilling Machine, 13mm 0.5Hp 1Ph BDM/MD (Belt type) with Electric: Eifco
Non-returnable
₹58,275.00
Out of stock
Stay productive and efficient with our time-saving pillar drill solutions.
_productIds
358315000005120383,358315000016929038,358315000001947113,358315000003932014,358315000002654498,358315000001948544,358315000001947860,358315000002033580,358315000006107086,358315000005493567,358315000002238227,358315000016843384 Specification
Drilling capacity in steel 13mm Morse taper in spindle 2 Spindle traverse 100mm Maximum distance between Table and Spindle 280mm Pillar diameter 57.15mm Distance between centre of spindle and column front 149mm Max. distance between spindle and table 300mm Max. distance between spindle and base 500mm Table Working surface 200 x 200 (With Coolant Gutter)mm Base Working surface 180 x 210mm No. of spindle speeds 4 Range of spindle speeds (rpm) 480 - 820 - 1320 - 2080 Feed Hand Power of the spindle drive motor 0.37kW/ 0.5 HP, 1425 rpm, 415 V AC, 3 Phase, 50 Hz Space occupied ( L x B x H ) 550x 340 x 1100mm Net weight of the machine 105Kg
