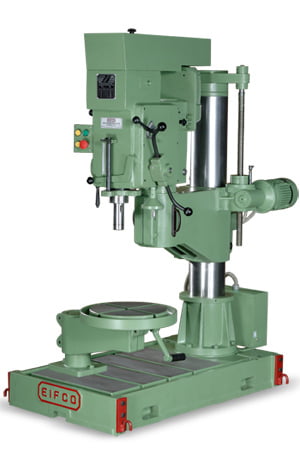

Radial Drilling Machine All Geared, 38mm 2Hp 3Ph RDH/A/325-DCT Drilling and Tapping With Electric: Eifco
Non-returnable
₹426,600.00
Out of stock
Effortless Hole Drilling Solutions: Choose Our Radial Drills
_productIds
358315000008019639,358315000016857177,358315000011947046,358315000002765540,358315000001946546,358315000004946380,358315000001948301,358315000005391298,358315000016843393,358315000005493567,358315000007227524,358315000001918161 Specification
Drilling Capacity in Steel 35mm Morse Tapper in Spindle 3 Spindle traverse / Auto feed 140mm No. of auto feed 3 Range of power feed 0.1 - 0.2 - 0.3 No of spindle speeds 10 Range of spindle speeds 100 - 142 - 210 - 310 - 450 - 600 - 852 - 1260 - 1860- 2700 RPM Power of Spindle drive motor 1.5kw/2HP 1440 RPM / 415 AC 3PH 50Hz Drilling Radius Max/Min 770/580 Diameter of pillar 180mm Distance between spindle nose and base 1065/ 500 mm Distance between base and round table 315mm Diameter of round table 335mm Base working surface 750x490mm Power lifting motor 0.75kW 1HP 2860 RPM 415AC 3PH 50Hz Dimension 1350x660x2080mm Weight 850Kg
