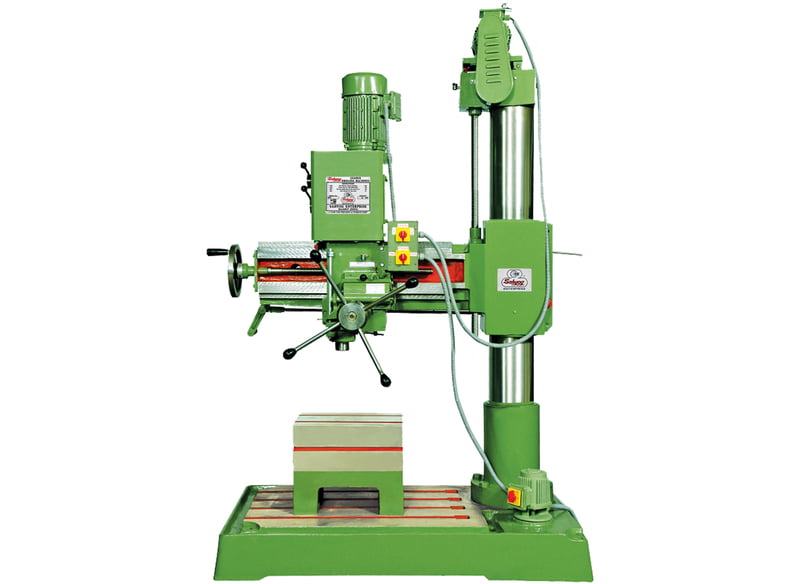

Radial Drilling Machine, 40mm 1.5Hp 3Ph SER-40/A (All Geared) Auto Feed With Electric: Siddhapura
Non-returnable
₹233,450.00
Out of stock
Effortless Hole Drilling Solutions: Choose Our Radial Drills
_productIds
358315000008019639,358315000016857177,358315000011947046,358315000002765540,358315000001946546,358315000004946380,358315000001948301,358315000005391298,358315000016843393,358315000005493567,358315000007227524,358315000001918161 Specification
Capacity Drilling Cap. (MS) 40mm Drill Head Taper in Spindle MT-4 Spindle Travel 220mm No. of Speed / Range (RPM) 9/ 80 to 1265 Spindle Feed Hand Fine / Auto Power No. of Auto Feed & Range 2/ 0.08 to 0.04mm/rev Working Range Drilling Radius Max./Min 895mm / 440mm Max./Min. Distance Column to Spindle 820mm / 310mm Max. Drill Head Travel 450mm Max./Min. Spindle to base 930mm / 230mm Column Dia 180mm Column Structure Single Column Power Supply Main Head 1.5HP 3Phase 1440RPM Elevating 0.5HP 3Phase 1440RPM Working Table L X W X H 380 X 300 X 300mm Base Plate L X W X H 750 X 1250 X 150mm Base Size (Machined Area) 820X610mm No. of T-Slots 4/M-16 Floor Space Required 1250 X 1550 X 2000mm
