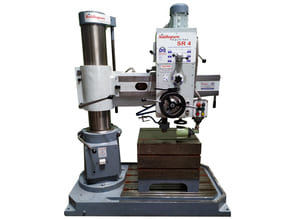

Radial Drilling Machine All Geared, 40mm 2Hp 3Ph SR-4 Auto Feed Double Column With Electric: Siddhapura
Non-returnable
₹541,650.00
Out of stock
Ready to Drill? Explore Our Radial Drill Machines for Ultimate Performance!
_productIds
358315000008019639,358315000016857177,358315000011947046,358315000002765540,358315000001946546,358315000004946380,358315000001948301,358315000005391298,358315000016843393,358315000005493567,358315000007227524,358315000001918161 Specification
Drilling 40mm Tapping M-27 Drill Head Spindle nose taper MT-4 Spindle Travel 225mm No. of Spindle Speeds & Range 12 & 55 to 2800RPM No. of Power Feeds & Range 6 & 0.030 - 0.310mm/Rev. Working Range Column Dia. 225mm Drilling Radius max./min 900/345mm Max./Min Distance from Spindle center to Column 800/232mm Max./Min Distance from Spindle nose to Base 950/440mm Vertical Travers of Drilling Head 500mm Horizontal Traverse of Drilling Head 600mm Swing of Radial Arm. 360° Power Supply Main Head Drive 2hp/1440RPM Radial Arm Elevating 1.0hp/1440RPM Working Table Working Surface (L X W) 510mm X 380mm Height 355mm Base Working surface (L X W) 1000mm X 800mm Height 150mm No. of T-Slots / Centre / Size 4 / 135mm & M19 Space & Packing Floor Space require (L X W X H) 2500 X 2450 X 2400mm Packing Case size (L X W X H) 2000 X 2450 X 2400mm
