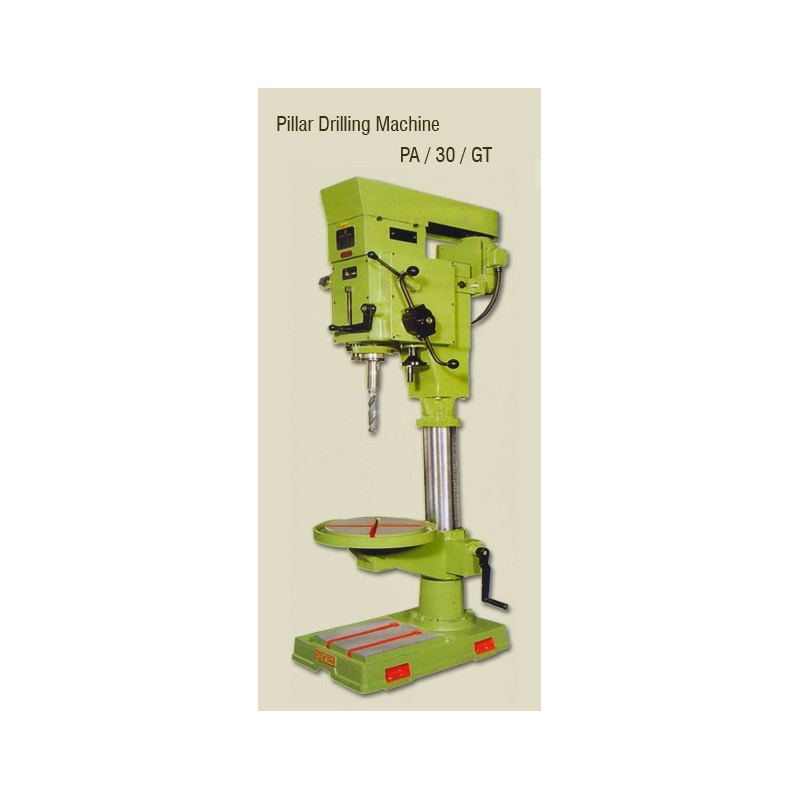

Pillar Drilling Machine, 20mm 1Hp 3Ph PDM/GT (Belt and Geared) with Electric: CKP
Non-returnable
₹102,000.00
Out of stock
Invest in a top-quality pillar drill and take your drilling projects to the next level - browse our collection today
_productIds
358315000016929038,358315000016857163,358315000001947302,358315000001947752,358315000002654471,358315000003246096,358315000004946380,358315000001948013,358315000002033669,358315000005391298,358315000002238256,358315000007227524 Specification
Drilling Capacity in Steel 20mm Taper Capacity in Steel M12 Morse taper in Spindle MT2 Spindle travels 130mm Vertical adjustment of Spindle head 425mm Pillar diameter Ø 80mm Distance between center of spindle and Column front 200mm Max. Distance between spindle and table 340mm Max. Distance between spindle and base 1200mm Table working Surface Ø 300s Base Working Surface 385 X 375mm No. of Spindle Speeds 10 Range of Spindle Speeds (rpm) 600-852-1260-1860-2700 Feeds by Hand Power of Spindle drive motor 0.75kw/1HP,1425 rpm, 400/440 Volt, AC,3Phase 50 Cycles Space occupied (H X W X L) 1850 X 460 X 780 Weight 280 Kgs.
