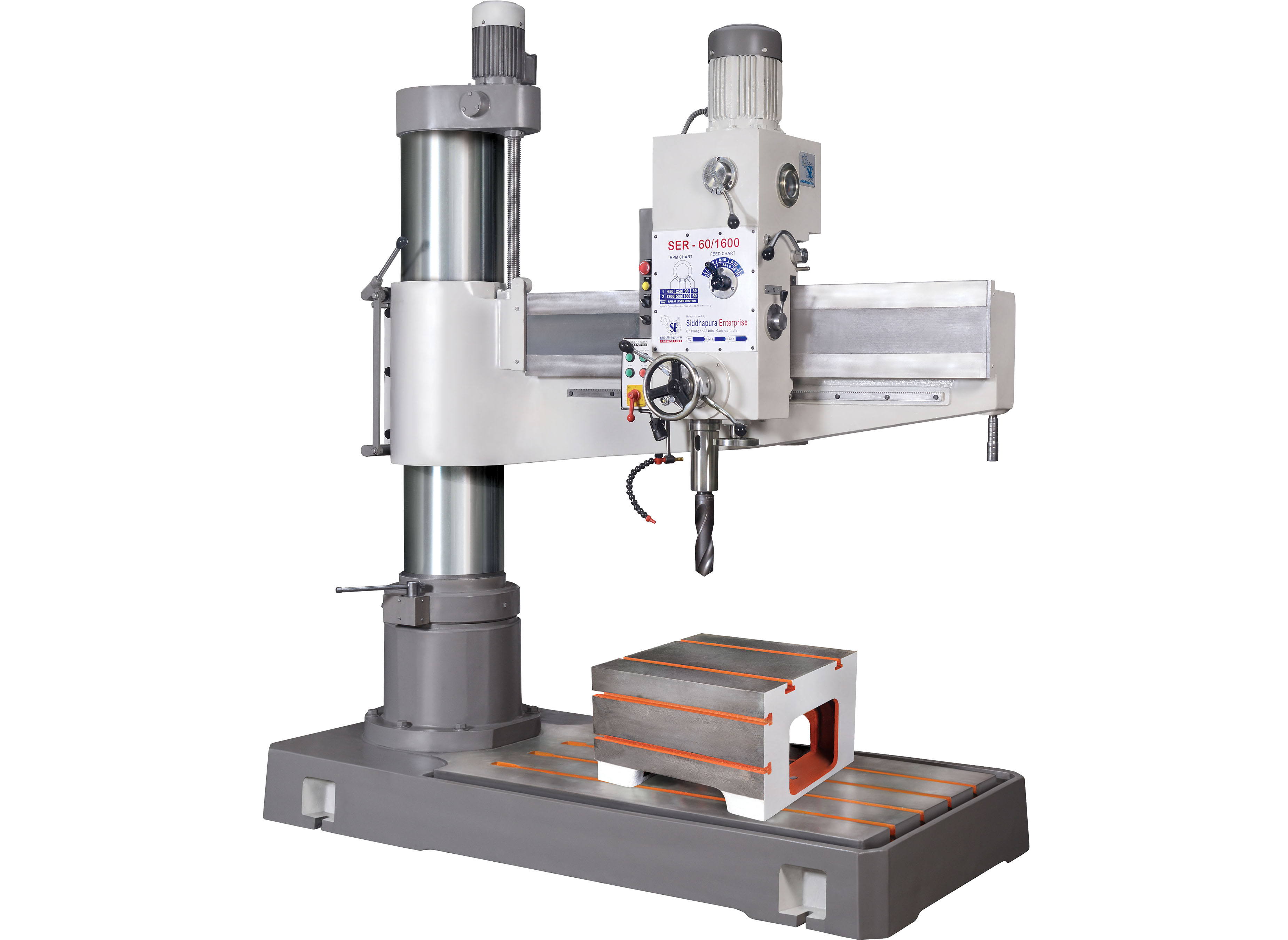

Radial Drilling Machine All Geared, 60mm 5Hp 3Ph SER-60/1700 Double Column: Siddhapura
Non-returnable
₹1,139,050.00
Out of stock
Specification
Drilling Capacity (in MS) 60 mm Tapping Capacity (in MS) 48 mm Boring Capacity (in MS) 90 mm Spindle Nose Taper MT-5 Spindle Travel 340 mm No. of Spindle Speeds & Range 8 & 30 to 1300 RPM No. of Quill Feeds & Range 6 & 0.06 to 0.5 mm/rev. Column Diameter 350 mm Drilling Radius Max./Min. 1700 / 500 mm Distance from Column to Spindle Center Max./Min. 1525 / 325 mm Distance from Base to Spindle Nose Max./Min. 1500 / 500 mm Horizontal Traverse 1200 mm Vertical Traverse 850 mm Base Plate Working Area 1500 x 920 mm Working Box Table Size (LxWxH) 600 x 500 x 500 Base Plate Size (LxWxH) 2260 x 1080 x 230 mm No. of T-Slots 4 Power Supply 3 Phase, 440 V, 50 Hz Drilling Head Motor 5 HP / 3.7 kW Arm Elevation Motor 2 HP / 1.4 kW Coolant Pump Motor 0.1 HP / 0.07 kW Overall Dimensions of Machine (LxWxH) 2450 x 1120 x 3000 mm
