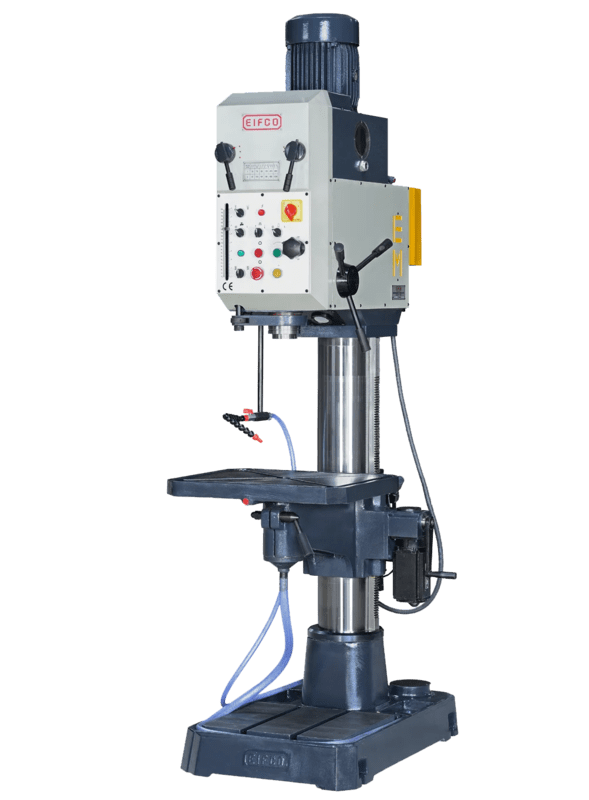

Pillar Drilling Machine All Geared, 50mm 3Hp 3Ph EP50AG with Electric: Eifco
Non-returnable
₹451,500.00
Out of stock
Tackle any drilling project with confidence using our versatile pillar drills.
Specification
Drilling capacity in steel 50mm Tapping capacity M 40 Morse taper in spindle 4 Spindle traverse 200 Pillar diameter 175mm Distance between center of spindle and Pillar front 350mm Max. distance between spindle and table 630mm Max. distance between spindle and base 1170 Table Working surface 400 x 460mm No. of spindle speeds 12 Range of spindle speeds (rpm) 25, 50, 75, 95, 150, 170, 190, 340, 475, 950, 600-1200 Feed Auto Feed No. of Power feeds 4 Range of power feeds (mm/ rev) 0.07 - 0.15 - 0.25 - 0.40 Power of the spindle drive motor 3 HP 2 Speed (720/1440) Space occupied ( L x B x H ) 1200 x 715 x 2120 Net weight 1200 Kg
