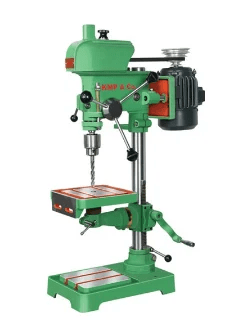

Pillar Drilling Machine, 13mm 0.5Hp (Belt Type) Round Table W/o Electric: KMP
Non-returnable
₹16,500.00
Out of stock
Stay productive and efficient with our time-saving pillar drill solutions.
_productIds
358315000005120383,358315000016929038,358315000001947113,358315000003932014,358315000002654498,358315000001948544,358315000001947860,358315000002033580,358315000006107086,358315000005493567,358315000002238227,358315000016843384 Specification
Drilling Capacity in Steel 13mm Sipindle Travel 105mm No. of Spindle Speed 04 Range of Spindle Speed 500-2825mm Column Diameter 46.80 Max. Distance between Spindle Center to column Face 180mm Max. Distance between Spindle Nose to Working Table 265mm Max. Distance between Spindle Nose to Base Plate 475mm Size of Square Table 235 x 235mm Size of Base Plate 265 x 385mm Electric Motor 3 Phase 0.5 H.P.1440 RPM 'V'-Belt Size M-2370 Net Weight of Machine in 58Kgs Overall Dimensions of Machine H x W x L 800 x 350 x 570mm Wooden Case Dimensions H x W x L 850 x 400 x 625mm
