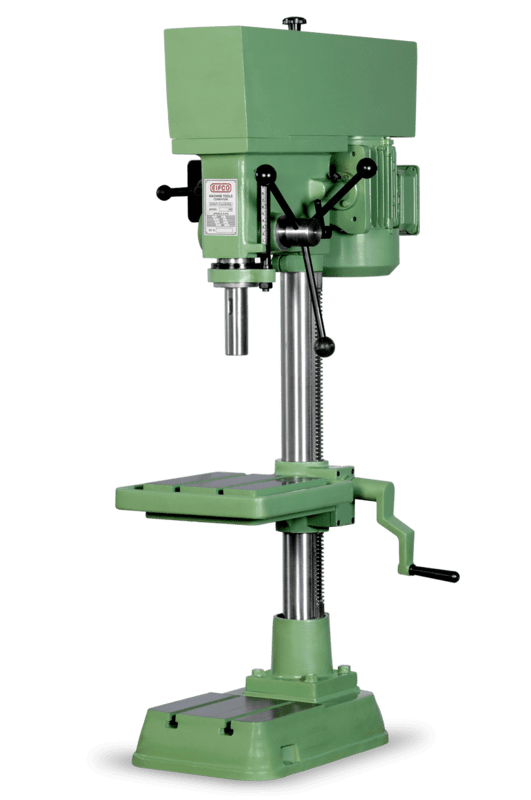

Pillar Drilling Machine, 20mm 1Hp 3Ph BDM/HD (Belt type) with Electric: Eifco
Non-returnable
₹89,250.00
Out of stock
Invest in a top-quality pillar drill and take your drilling projects to the next level - browse our collection today
_productIds
358315000016929038,358315000016857163,358315000001947302,358315000001947752,358315000002654471,358315000003246096,358315000004946380,358315000001948013,358315000002033669,358315000005391298,358315000002238256,358315000007227524 Specification
Drilling capacity in steel 20mm Morse taper in spindle 2 Spindle traverse 125mm Maximum distance between Table and Spindle 280mm Pillar diameter 76.2mm Distance between center of spindle and column front 200mm Max. distance between spindle and table 300mm Max. distance between spindle and base 600mm Table Working surface 370 Dia (With Coolant Gutter) Base Working surface 385 x 375mm No. of spindle speeds 5 Feed Hand Power of the spindle drive motor 0.75 kW/ 1 HP, 1400 rpm, 415 V AC, 3 Phase, 50 Hz Space occupied ( L x B x H ) 790 x 440 x 1370 Net weight of the machine 210 Kg
